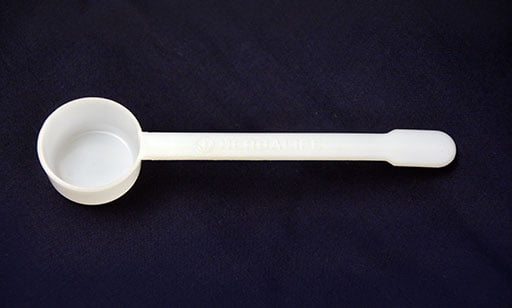

Medical Spoon Mould

For Manufacturing of plastic top quality medical spoo, We provide a Customized Medical Spoon Mould. With our precifirm commitment to quality, we are engaged in manufacturing and customising the best quality range of Plastic Medical Spoon Injection Mold.

This range is manufactured using qualitative grade material and advanced machines in adherence to the set industry standards. The offered range is widely appreciated for its perfect finish and premium quality. Additionally, we also provide a customize option in the Medical Spoon Injection Mould. Customers can customize the mould as per their requirements. No matter what the manufacturing process, there is always a quality control set in place to make sure our moulds are meet our predefined quality standards & have the customization that clients need.

Technical Specification

Specification

Mould Name	Medical Spoon Mould
Mould Size	400 X 450 X 280 mm
Product Description	PP/PS
Mould Cavity	18 to 24 cavity
Spoon Weight	2 to 2.5 gm
Suitable Machine	100 to 200 Tons
Mould Steel	Core and Cavity P-20-2738 Prehard HRC32-38, Back Plate-C45
Heat Treatment	HRC-32-38

Mould Life	60,00,000 shots
Mould Injection system	Hot / Cold Runner bush
Mould Ejection system	Ejection Pin
Mould Running	Automatic / Manual
Mould Features	2 Plates moulds
Mould Injection Cycle Time	10.8 seconds
Delivery Time	30 Days for T1 Sample
Mould Surface Treatment	Polish,Chrome, niteding

Key Features

Features

Precisely
Engineered

Anti
Corrosive

Long
Service Life

High Compressive
Strength

Effortless
Cleaning

Dimensionally
Accurate

Fully
Automated

Durable
Material

Easy to
Install

Low
Maintenance

Customization Options

Customization

Shape

Customize a mould according to the requirement of the shape of your spoon.

Handle

Customize a spoon mould according to the requirement of Long/Short Handle of your spoon

Scoop

Customize a mould according to the requirement of the Scoop of your spoon.

Cavity

Customize a spoon mould cavity after considering your production need & machine capacity.

Deep

Customize a mould according to the requirement of the Deep of your spoon.

Application

Make a custom mould according to different types of application of the spoon.

Branding on Spoon

If you would like to Print your Brand Name, Logo, Design, Text & whatever you like on the spoon, We can build a custom mould for you that will help make the product more beautiful.

Runner System Customization

We can customize Plastic Spoon Injection Mould by its Runner System – Surface Runner and Gate Design, Hot Runner and Three Plate Runner & Pin-Point Gate customization.

Mould Injection & Running

We can customize mould by Hot or Cold Runner Bush Injection System and also Customize a Mould Running System by Automatic or Manual Depends upon your Requirements.
